What is tapping into a switched circuit?

  • Andy2640
  • Topic Author
  • New Member
  • New Member
    Public
More
19 Apr 2020 18:47 #221285 by Andy2640
Replied by Andy2640 on topic What is tapping into a switched circuit?

Lambert wrote: Whatever. It's not my car. I wouldn't patch into another system with anything associated with a winch when it is so easy to go straight to the battery for a feed, especially on a car still in warranty. Just my opinion.


Thanks lambo for your opion and thoughts. It is appreciated and before i go ahead with anything I will be taking everyones expertise and asking around some suppliers who have already fitted this type of winch. A wealth of experience on this forum and its gold!!

Thanks buddy!


Well, today ive been planning my attack, searching out the routes from engine bay to cabin



From cabin to finding live wires with me flashy screwdriver thingybaabobby



The wires going to the rear


I'd love to find my old jimny build thread for my jimny, canny seem to find it. It was summit like Andys blue SZ5.

Cheers.

Please Log in or Create an account to join the conversation.

More
19 Apr 2020 19:00 - 19 Apr 2020 19:04 #221287 by Soeley

Andy2640 wrote:

DAGZOOK wrote: Andy, it might be worth having a look at the connection on the back of the Ciggy lighter. If it's a standard 8-10mm spade bit, a less intrusive method of Joining your remote live would be to remove the factory spade crimp, twist both live tails together and crimp on a new spade connector. No splicing/Wago required B)


Great idea! Gonna go have a butchers in a vit.

Thabks for your help everyone and thabk you Dagzook:)


Even less intrusive, if it is a standard spade connector would be to crimp a piggy back spade connector onto the Warn wire?
Piggy Back that way no need to cut of the factory spade connector.
Last edit: 19 Apr 2020 19:04 by Soeley.

Please Log in or Create an account to join the conversation.

  • Andy2640
  • Topic Author
  • New Member
  • New Member
    Public
More
19 Apr 2020 19:13 - 19 Apr 2020 19:15 #221289 by Andy2640
Replied by Andy2640 on topic What is tapping into a switched circuit?

Soeley wrote:

Andy2640 wrote:

DAGZOOK wrote: Andy, it might be worth having a look at the connection on the back of the Ciggy lighter. If it's a standard 8-10mm spade bit, a less intrusive method of Joining your remote live would be to remove the factory spade crimp, twist both live tails together and crimp on a new spade connector. No splicing/Wago required B)


Great idea! Gonna go have a butchers in a vit.

Thabks for your help everyone and thabk you Dagzook:)


Even less intrusive, if it is a standard spade connector would be to crimp a piggy back spade connector onto the Warn wire?
Piggy Back that way no need to cut of the factory spade connector.



Mate.... getting to the front ciggie wire is a nightmare! It seems like a lot of panelling has to be removed. I gave it 20 mins and gave up. Could have a better go tomorrow. However.... the rear ciggie port is much more accessavle but a looong ways away from where i need it.

I like the piggyback idea, but at this moment ive found the rear ciggie port cable running along my passenger door sill. My flashy screwsriver thingybaabobby has just given up the ghost (Typical) so im trying to assertain which wire is the live, is it blue or black??? You have 2 minutes before this bomb blows!!! Help!!!

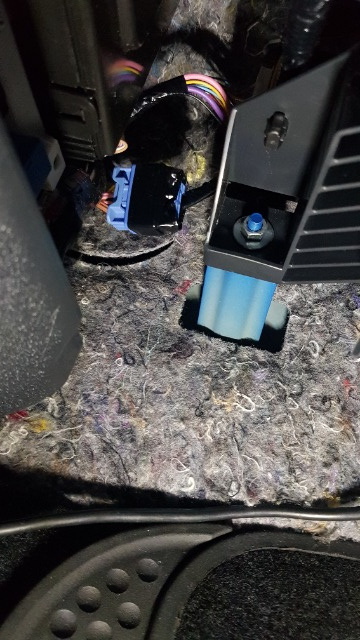

A piccy of the bomb defusing op.
Last edit: 19 Apr 2020 19:15 by Andy2640.

Please Log in or Create an account to join the conversation.

More
19 Apr 2020 19:42 - 19 Apr 2020 19:45 #221291 by Soeley
Andy, just been out to the garage to take some pictures. Five minute job once you know how.

Remove the coin tray


Remove push rivet either side.


Remove small panel just left of the steering column. Put fingers between column and panel and pull.


Release top edge of switch panel by pulling down then pull the lower side up and out.


Really don't know why it is rotating my pictures?
Last edit: 19 Apr 2020 19:45 by Soeley.
The following user(s) said Thank You: Andy2640

Please Log in or Create an account to join the conversation.

  • Andy2640
  • Topic Author
  • New Member
  • New Member
    Public
More
19 Apr 2020 19:59 #221292 by Andy2640
Replied by Andy2640 on topic What is tapping into a switched circuit?

Soeley wrote: Andy, just been out to the garage to take some pictures. Five minute job once you know how.

Remove the coin tray



Remove push rivet either side.


Remove small panel just left of the steering column. Put fingers between column and panel and pull.


Release top edge of switch panel by pulling down then pull the lower side up and out.


Really don't know why it is rotating my pictures?


I got to step 2, and then got scared of snapping summit. Your a LEGEND!!!

Please Log in or Create an account to join the conversation.

More
19 Apr 2020 20:01 #221293 by Soeley
That's always the case, when you've done it once though ;)
