Snorkel template!

Daniel30
New Member
Public

26 Mar 2020 09:25 #220277 by Daniel30

Replied by Daniel30 on topic Snorkel template!

Think it will be a case of making you own by covering the reverse of the snorkel with paper and trimming it out

Please Log in or Create an account to join the conversation.

Scimike
Offline
Platinum Member
Registered

26 Mar 2020 12:25 #220278 by Scimike

Replied by Scimike on topic Snorkel template!

I think Daniel30 is correct. I've had a Google (stuck at home) and not found any requests for templates that have been successful.
So making your own using the snorkel as the guide is probably the best option. Start with getting the large hole in the correct location and allow for a bit of adjustment, then use this as the marker for the fixing holes you have marked on your template. Take your time, measure twice, cut once and you will be fine. Paint the cut holes to prevent rust and you are snorkeling before you know it.:laugh:

Yokohama Geolanders, Sony head unit, NAUTILUS Air Horn, DRL conversion, Rear cargo space, Elvis Bobblehead, transfer Guard, Indian hanging Elephant, Koni Heavy track dampers, Custom SS exhaust, Voodoo Doll, Adventure Rack with LED ight bar, vintage ERIBA caravan usually attached (yes it's slow)

Please Log in or Create an account to join the conversation.

Riccy
Offline
Banned
Registered
J999 MNY Bashing around Carlisle

26 Mar 2020 16:46 #220283 by Riccy

Replied by Riccy on topic Snorkel template!

Im sure I have a couple of these templates, Im off tomorrow so will dig it out and make a decent drawing for everyone ;-)

J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp

Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...

www.youtube.com/user/riclemus

The following user(s) said Thank You: X8GGY

Please Log in or Create an account to join the conversation.

Evzlid
Topic Author
New Member
Public

26 Mar 2020 17:44 #220288 by Evzlid

Replied by Evzlid on topic Snorkel template!

Thank you so much everyone for your reply’s! Great to finally be a member of this site! Riccy it would be amazing if you could do that and I will take everyone else’s advise and measure twice and drill once! Thanks again folks!
Andy

Please Log in or Create an account to join the conversation.

Evzlid
Topic Author
New Member
Public

26 Mar 2020 17:46 #220289 by Evzlid

Replied by Evzlid on topic Snorkel template!

Thanks mate! I’m sure that would be a great help if it’s not to much trouble! Thanks for the welcome!
Andy

Please Log in or Create an account to join the conversation.

Riccy
Offline
Banned
Registered
J999 MNY Bashing around Carlisle

27 Mar 2020 16:29 #220327 by Riccy

Replied by Riccy on topic Snorkel template!

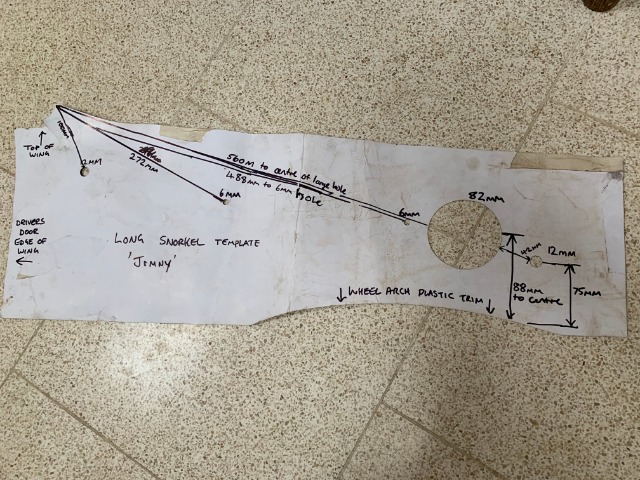

Here you go...

Its beyond my skills to create a CAD file of this, but maybe the measurements ive put on are enough to work from ?

Riccy
