Snorkel template!

Scimike
Offline
Platinum Member
Registered

28 Mar 2020 12:23 #220358 by Scimike

Replied by Scimike on topic Snorkel template!

Hi Riccy,
Don't suppose you would consider posting the template to me, I will cover the postage cost?

I don't want a snorkel on my Jimny, but as I could have a go at turning it into a printable PDF and put it in the wiki for those that do. Sort of like a print at home template on A4 and sellotape together if it works.
No problem if you don't want to venture out or just don't want to, and I am in no rush if you do.
Mike

Yokohama Geolanders, Sony head unit, NAUTILUS Air Horn, DRL conversion, Rear cargo space, Elvis Bobblehead, transfer Guard, Indian hanging Elephant, Koni Heavy track dampers, Custom SS exhaust, Voodoo Doll, Adventure Rack with LED ight bar, vintage ERIBA caravan usually attached (yes it's slow)

Please Log in or Create an account to join the conversation.

Riccy
Offline
Banned
Registered
J999 MNY Bashing around Carlisle

28 Mar 2020 16:23 #220359 by Riccy

Replied by Riccy on topic Snorkel template!

Hi Mike,

yes of course, PM me your address and I will get it sent Monday (not like ive a lot else to do atm).

You are in a good position to try the template against your original wing to see where it goes.

Riccy

J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp

Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...

www.youtube.com/user/riclemus

The following user(s) said Thank You: Scimike

Please Log in or Create an account to join the conversation.

Scimike
Offline
Platinum Member
Registered

28 Mar 2020 16:30 #220360 by Scimike

Replied by Scimike on topic Snorkel template!

Thanks Riccy,
It gives me something to do also!
Hopefully in the future if needed it can be downloaded.
I'll send you a PM.
Mike

The following user(s) said Thank You: Riccy

Please Log in or Create an account to join the conversation.

yakuza
Offline
Platinum Member
Registered

28 Mar 2020 21:59 #220384 by yakuza

Replied by yakuza on topic Snorkel template!

Made my own template today and it was partly successful. My snorkel is mounted, but I guess it should have been a cm or so more fwd.
No problem with the bolts but where to start with the big hole was a bit hit and miss.
Drilled the bolt holes from my own template in one go and they all fit but had to expand them all fwd after drilling.

So a template or at least some measurements for the center of the big hole would help greatly.

Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.

Please Log in or Create an account to join the conversation.

jackonlyjack
Offline
Platinum Member
Registered

28 Mar 2020 22:03 #220385 by jackonlyjack

Replied by jackonlyjack on topic Snorkel template!

No eBay APP ID and/or Cert ID defined in Kunena configurationOne of these is your friend when fitting a snorkel

My Jimny
www.bigjimny.com/index.php/forum?view=topic&catid=8&id=60814

www.youtube.com/channel/UCfJa3cPPDZYGwkWr0rvu8ug

Please Log in or Create an account to join the conversation.

yakuza
Offline
Platinum Member
Registered

29 Mar 2020 10:09 - 29 Mar 2020 10:13 #220396 by yakuza

Replied by yakuza on topic Snorkel template!

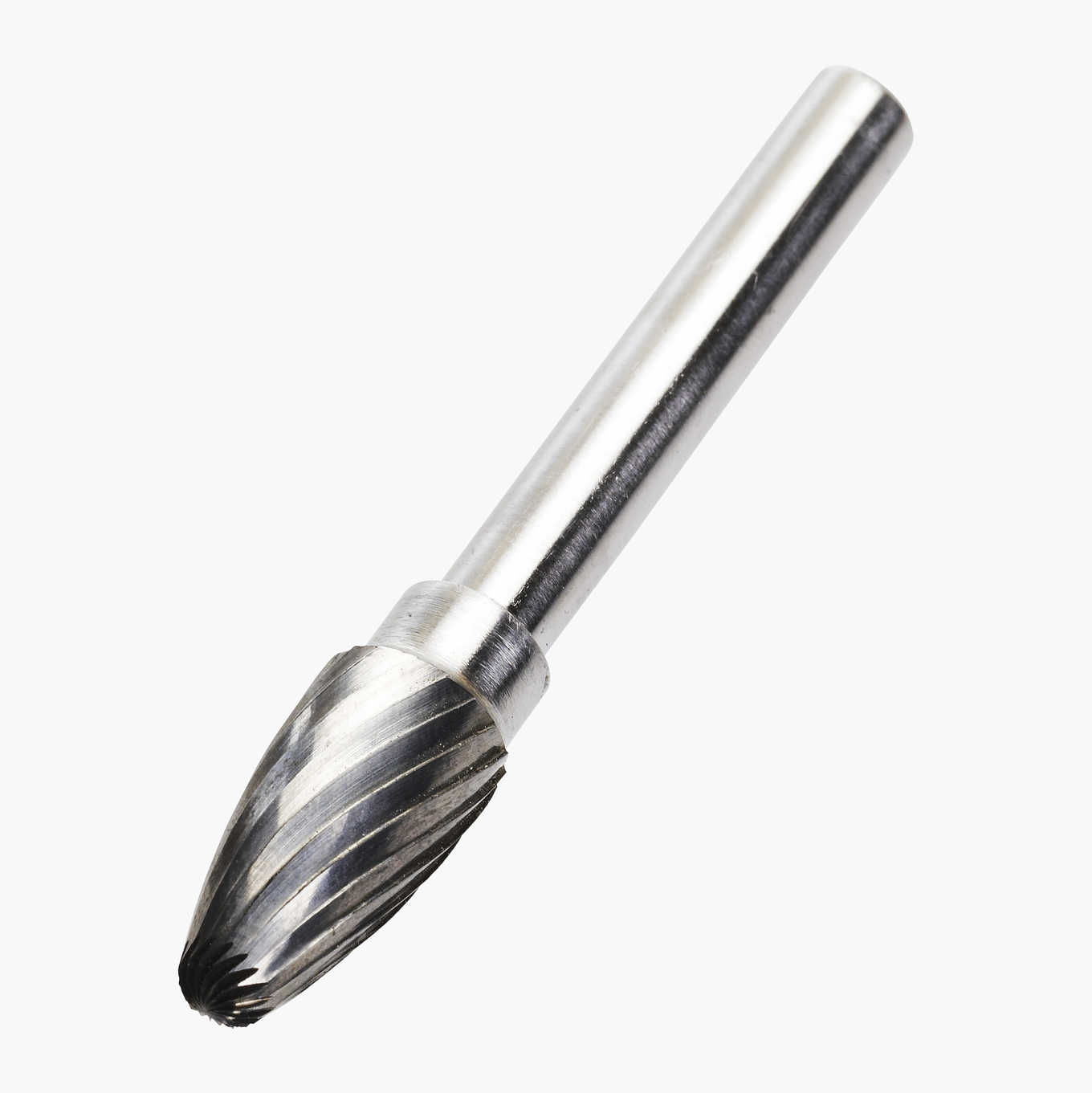

I got one of these:

drill bithttps://productimages.biltema.com/v1/Image/article/xxlarge/20542/2

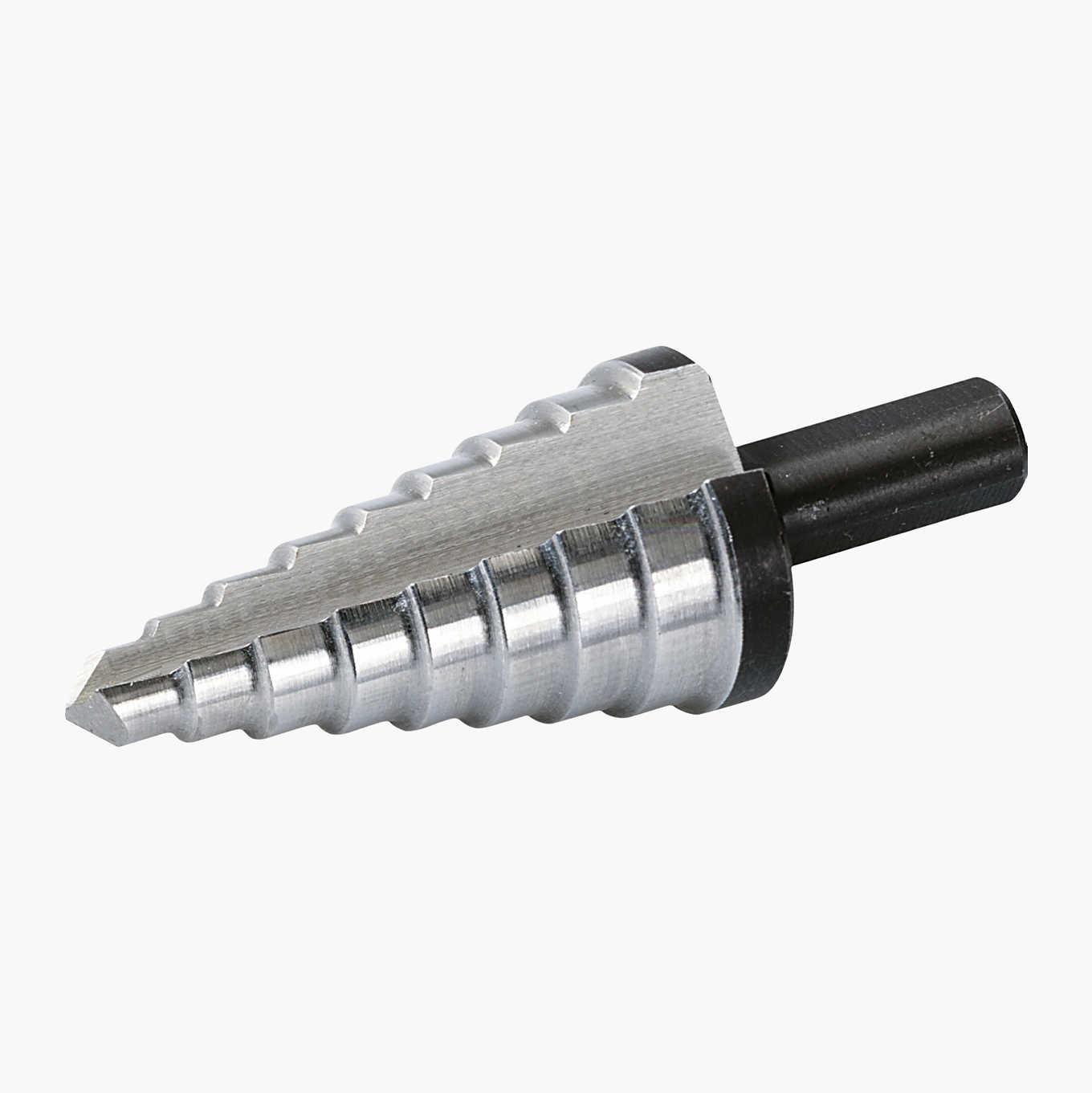

also a reciprocating saw and a step drill:
