Re:SZ5 Jimny automatic transmission fluid.

Crumbs
Topic Author
New Member
Public

04 Oct 2019 18:55 #214315 by Crumbs

SZ5 Jimny automatic transmission fluid. was created by Crumbs

Hi people.

I am puzzled.

The Suzuki dealer has told me that the automatic transmission fluid level is not checked on scheduled services because the auto box is a sealed unit and has no dip stick.

I wonder why the owner’s manual specifies the correct automatic transmission fluid is SUZUKI AFT3317 OR Mobil AFT3309 or equivalent to DEXTRON-III?

How do I maintain the automatic transmission fluid?

Regards.

Please Log in or Create an account to join the conversation.

Lambert
Offline
Moderator
Registered
The quickest Jimny in Harrogate...(that I own)

05 Oct 2019 06:02 #214326 by Lambert

Replied by Lambert on topic SZ5 Jimny automatic transmission fluid.

That can't be right? There has to be a service schedule for an automatic transmission even if it is at 100k miles dextron 3 doesn't last indefinitely.

Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
Bellerophon (2024 grello van daily
ADOS Attention Deficit Ooooh Shiny!

Please Log in or Create an account to join the conversation.

mlines
Offline
Administrator
Super Users
Wokingham, UK

05 Oct 2019 06:38 #214329 by mlines

Replied by mlines on topic Re:SZ5 Jimny automatic transmission fluid.

Which year SZ5?

Sent from my Pixel 2 XL using Tapatalk

Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses

Please Log in or Create an account to join the conversation.

Crumbs
Topic Author
New Member
Public

05 Oct 2019 08:09 #214335 by Crumbs

Replied by Crumbs on topic Re:SZ5 Jimny automatic transmission fluid.

Hi Martin.

This year 2019 SZ5 Jimny, automatic, kinetic yellow, seven months old. AKA Generation 4.

Have you got yours yet?

Please Log in or Create an account to join the conversation.

Gadget
Offline
Platinum Member
Registered
Essex, UK

05 Oct 2019 09:03 #214339 by Gadget

Replied by Gadget on topic Re:SZ5 Jimny automatic transmission fluid.

I think someone is telling you porkies!

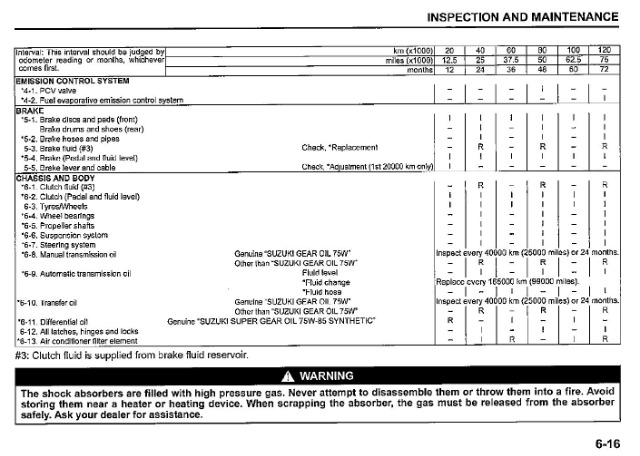

From the manual (downloadable version on Suzuki site, which seems to differ slightly from hardcopy) for 'normal' driving conditions in the EU, inspect fluid level every 24 months or 25k miles, replace every 99k miles.
