Link vs Radius Arm Setup

  • OllieNZ
  • Topic Author
  • New Member
  • New Member
    Public
More
08 Jan 2017 16:33 #176389 by OllieNZ
Replied by OllieNZ on topic Link vs Radius Arm Setup

TomDK wrote: You could also consider something like an A-frame for the rear axle. Much like the Land Rover. Seems to work pretty well.


Iirc Placek did that with his jimny. It's definitely another option that I'll look at.

Please Log in or Create an account to join the conversation.

More
08 Jan 2017 17:50 #176396 by Keithy
Replied by Keithy on topic Link vs Radius Arm Setup
I don't think he's posted any progress for a while....

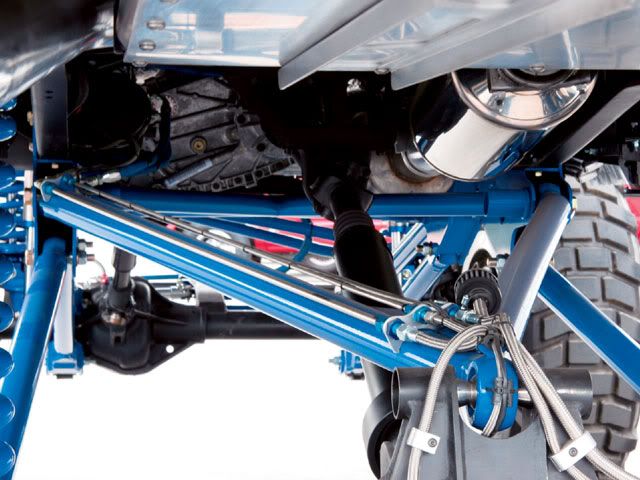

I like this type of 3 link.

Please Log in or Create an account to join the conversation.

  • TomDK
  • New Member
  • New Member
    Public
More
08 Jan 2017 18:03 #176398 by TomDK
Replied by TomDK on topic Link vs Radius Arm Setup
Exactly the A frame type of suspension I mentioned. Looks rather simple to setup compared to a 4 link. And you don't need the panhard rod as with the 3 link.

Please Log in or Create an account to join the conversation.

  • OllieNZ
  • Topic Author
  • New Member
  • New Member
    Public
More
08 Jan 2017 18:10 #176399 by OllieNZ
Replied by OllieNZ on topic Link vs Radius Arm Setup

Keithy wrote: I don't think he's posted any progress for a while....

I like this type of 3 link.


I think that's the type of link TomDK is talking about, technically it's considered a 4 link. Even though it comes to a single point on top of the rear axle, geometrically it behaves and is calculated in the same manner. I wasn't planning on relocating the fuel tank so I'm not sure if I'll have room for that type of linkage. That fun will all come once I've got the body off :woohoo:

Please Log in or Create an account to join the conversation.

  • OllieNZ
  • Topic Author
  • New Member
  • New Member
    Public
More
08 Jan 2017 18:11 #176400 by OllieNZ
Replied by OllieNZ on topic Link vs Radius Arm Setup
Oops, didn't see your post Tom

Please Log in or Create an account to join the conversation.

More
08 Jan 2017 20:23 #176405 by Keithy
Replied by Keithy on topic Link vs Radius Arm Setup
Drew these a while back long hole distance 550 front 670 rear short centres 147 front 150 rear....I need to check the 147...seems strange?

That's as far as I got....no idea of the chassis separation distance.
