Front Fog Lights

I have managed to get hold of a pair of front fog lights(with bumper) and the switch but cannot find a wiring diagram for that circuit on the DVD for the Jimny. It has the rear fog light circuit on there though! Anybody got one to hand or can point me in the right direction? I think the fog light option must have been for a later model. Mine is on a 51 plate.
The switch itself has 5 wires still attached from when it was removed from the donor vehicle. They are :- 2 black and one of each of brown, blue and pink

mickt wrote: I think the fog light option must have been for a later model. Mine is on a 51 plate.

Dunno if I have misunderstood but my 1999 has front fogs.

Were they fitted when you got the car? If not did you fit them? Are they as standard i.e is the wiring factory loomed and is the switch factory fitted along with the relay?

mickt wrote: Were they fitted when you got the car? If not did you fit them? Are they as standard i.e is the wiring factory loomed and is the switch factory fitted along with the relay?

Yup, factory fitted and all that.

In my owners manual that came with the car it does not mention the front fogs. The fuse only states rear fog. Does your front fogs have a separate fuse?

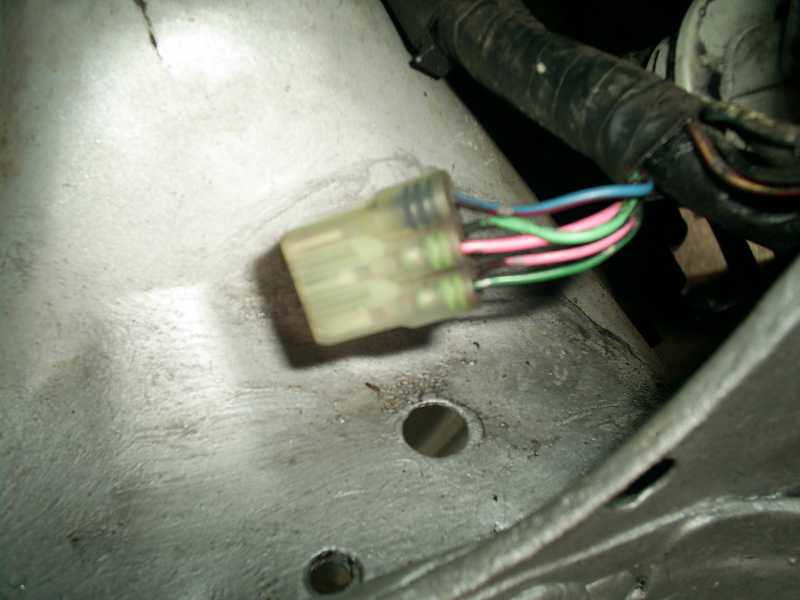

I have found an unused connector at the front drivers headlamp loom which I assume is for the fog lights. Removing the blanking cover where the switch would fit in the car(next to the rear fog light switch) did not reveal an unused connector for the switch though to be truthful the access is not brilliant but using a torch I could not see anything. The fog lights themselves have each only got two wires, black(earth?) and red(feed?) so I would like to know what the five wires at the connector are for. The colours are, green, pink/black, green/red, pink and blue/red. Also I was wondering if anybody knows where you can buy the corresponding female connector for the aforementioned plug. Or at least what type of plug they are. It is rectangular and measures 18mm by 13mm and has 6 pin compartments. There seems to be no locating/orientation key to it.
