Wiring Connector by fuse box

Fossie
Offline
Elite Member
Registered

16 May 2020 20:47 #222358 by Fossie

Replied by Fossie on topic Wiring Connector by fuse box

I have exactly the same thing , a wire from the positive connection with a 15 amp fuse fitted in that connector. The wire then runs along the loom alongside the fog light part of the loom into the mass around the vacuum connector ....though I think this is just where it was secured .......don't know what it's for but my fog lights don't work but the bulbs have continuity , but no voltage at the bulb end of the loom.

The following user(s) said Thank You: TillymintDLG

Please Log in or Create an account to join the conversation.

Roger B
Topic Author
New Member
Public

17 May 2020 07:37 #222367 by Roger B

Replied by Roger B on topic Wiring Connector by fuse box

Funny you should say that, my fog lights also do not work. I still have the problem of it not starting and a code reader cannot link to the ecu. Gonna have to send it away to get tested..........let's hope

Please Log in or Create an account to join the conversation.

Roger B
Topic Author
New Member
Public

17 May 2020 08:15 #222369 by Roger B

Replied by Roger B on topic Wiring Connector by fuse box

Hi again, is there an interior fuse box on a 2003 Jimny, if so where is it?

Please Log in or Create an account to join the conversation.

Fossie
Offline
Elite Member
Registered

18 May 2020 10:44 #222474 by Fossie

Replied by Fossie on topic Wiring Connector by fuse box

In reference to this red aftermarket wire.....the fog light thing is a red herring I logically believe , it makes more sense to be a feed for an aftermarket radio, which would require a live feed for date / time display...15a is a touch overkill though......I say this because mind has a Kenwood jobbie fitted that updates the time date by a calander, so would need a low drain feed .

Please Log in or Create an account to join the conversation.

TillymintDLG
New Member
Public

18 May 2020 12:56 #222479 by TillymintDLG

Replied by TillymintDLG on topic Wiring Connector by fuse box

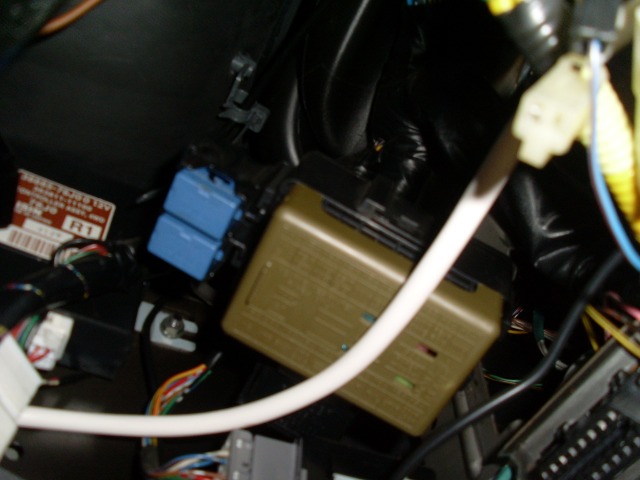

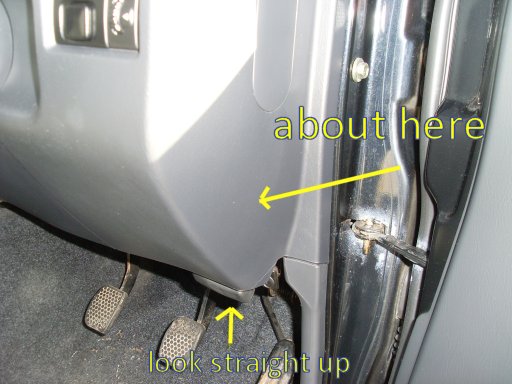

Yes there is Roger but you can only see it properly if you drop down the panel under the steering column shroud and lie half out of the car!

Gaz

Please Log in or Create an account to join the conversation.

Roger B
Topic Author
New Member
Public

18 May 2020 13:12 #222480 by Roger B

Replied by Roger B on topic Wiring Connector by fuse box

Hi Gaz, Many thanks for that.
Do you know if any of those fuses supply power to the ecu?

Please Log in or Create an account to join the conversation.
