Chinese Steel Bumpers: Installation
- Rabid Rhino
- Topic Author
- Offline
- Elite Member
-
Registered
23 Mar 2020 00:00 - 23 Mar 2020 00:01 #220171
by ahtr
I had no instructions. Drilled a few holes, just made it up as I went along, few extra bolts on the 'dog leg' brackets. Also where the 'dog leg' brackets bolt to the winch plate I drilled right through the chassis legs and bolted right through with some steel/spacers to strengthen it up.
The parts you've got left I just put in the scrap bin. The 2 bits on the left bolt onto the end of the chassis rails, then the winch plate is supposed to bolt to these using the big washers you have left. But like I said, I binned them and made up something myself as the fit wasn't great.
My green laner build
2003 Jimny - M16 engine - 4.16 TC - Winch - Snorkel - 30x9.5 Maxxis MT-764 tyres on 15x7 ET-7 offset wheels - 4" lift - Rear floating axles and discs
Replied by ahtr on topic Chinese Steel Bumpers: Installation
Rabid Rhino wrote: Missing a load of nuts and bolts from a torn open bag as the box was quite badly damaged.
Hopefully that's all I'm missing.
1 Dog leg bracket is on the car

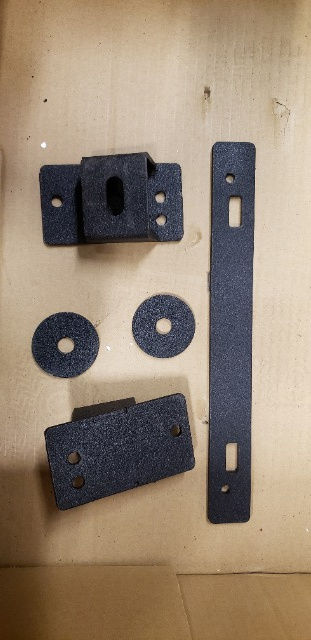

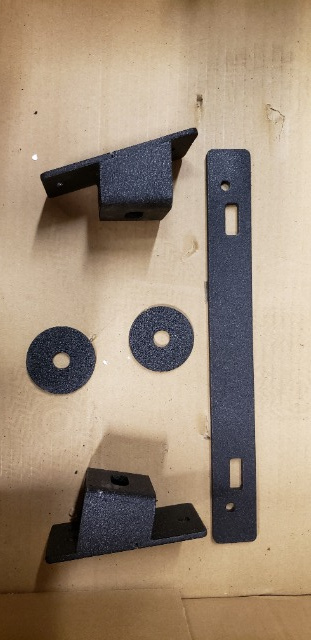

What are the brackets below for & where do they go ?
I had no instructions. Drilled a few holes, just made it up as I went along, few extra bolts on the 'dog leg' brackets. Also where the 'dog leg' brackets bolt to the winch plate I drilled right through the chassis legs and bolted right through with some steel/spacers to strengthen it up.
The parts you've got left I just put in the scrap bin. The 2 bits on the left bolt onto the end of the chassis rails, then the winch plate is supposed to bolt to these using the big washers you have left. But like I said, I binned them and made up something myself as the fit wasn't great.
My green laner build
2003 Jimny - M16 engine - 4.16 TC - Winch - Snorkel - 30x9.5 Maxxis MT-764 tyres on 15x7 ET-7 offset wheels - 4" lift - Rear floating axles and discs
Last edit: 23 Mar 2020 00:01 by ahtr.
Please Log in or Create an account to join the conversation.
- Rabid Rhino
- Topic Author
- Offline
- Elite Member
-
Registered
25 Mar 2020 00:38 #220240
by Rabid Rhino
Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Replied by Rabid Rhino on topic Chinese Steel Bumpers: Installation

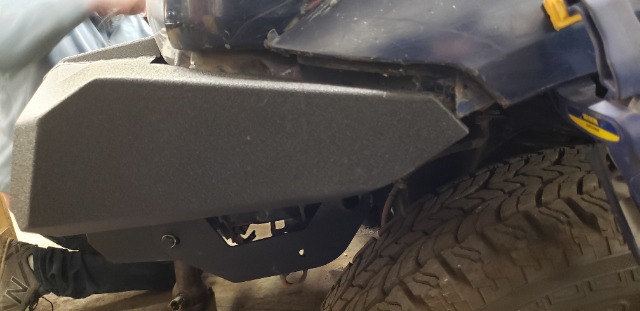

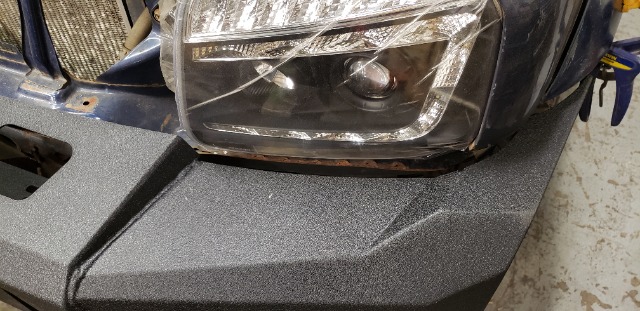

ahtr, you got any close up pics of the corners, front & side on at the arches ?
I can't get the ends to line up with the arches. I'm out by about 0.5" there and under the lights there's a similar 0.5" gap.
The bumper won"t go any further back because its hitting the front edge of the lower slam panel.
So the only solution I can see is trim 0.5" of the rear top edge of the bumper
Trim the 0.5" here
I can't get the ends to line up with the arches. I'm out by about 0.5" there and under the lights there's a similar 0.5" gap.
The bumper won"t go any further back because its hitting the front edge of the lower slam panel.
So the only solution I can see is trim 0.5" of the rear top edge of the bumper
Trim the 0.5" here
Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Please Log in or Create an account to join the conversation.
- Reason2doubt
-
- Offline
- Platinum Member
-
Registered
26 Mar 2020 08:32 #220275
by Reason2doubt
No instructions on mine either. Had some bits leftover but still couldn't think of where they could go so they got binned as well.
Replied by Reason2doubt on topic Chinese Steel Bumpers: Installation
ahtr wrote:
Rabid Rhino wrote: Missing a load of nuts and bolts from a torn open bag as the box was quite badly damaged.
Hopefully that's all I'm missing.
1 Dog leg bracket is on the car
What are the brackets below for & where do they go ?
I had no instructions. Drilled a few holes, just made it up as I went along, few extra bolts on the 'dog leg' brackets. Also where the 'dog leg' brackets bolt to the winch plate I drilled right through the chassis legs and bolted right through with some steel/spacers to strengthen it up.
The parts you've got left I just put in the scrap bin. The 2 bits on the left bolt onto the end of the chassis rails, then the winch plate is supposed to bolt to these using the big washers you have left. But like I said, I binned them and made up something myself as the fit wasn't great.
No instructions on mine either. Had some bits leftover but still couldn't think of where they could go so they got binned as well.
Please Log in or Create an account to join the conversation.
- Reason2doubt
-
- Offline
- Platinum Member
-
Registered
26 Mar 2020 08:33 - 26 Mar 2020 08:52 #220276
by Reason2doubt
Replied by Reason2doubt on topic Chinese Steel Bumpers: Installation

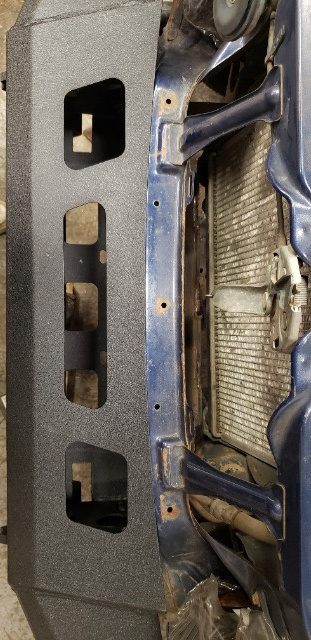

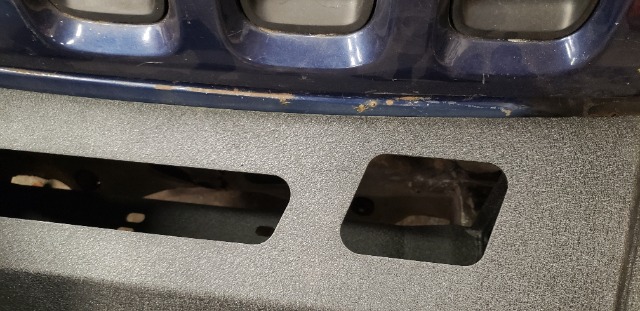

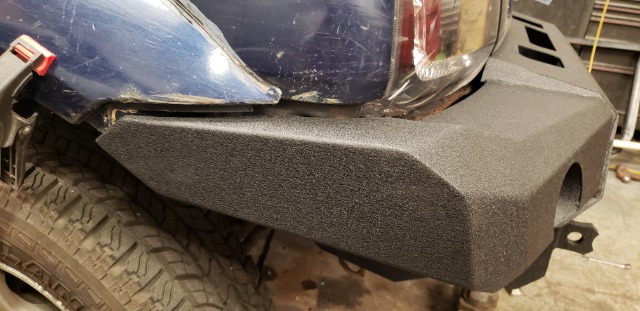

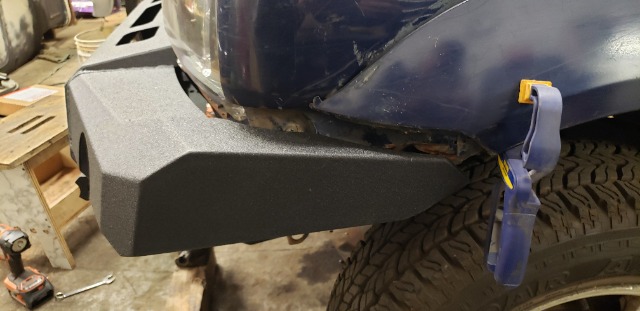

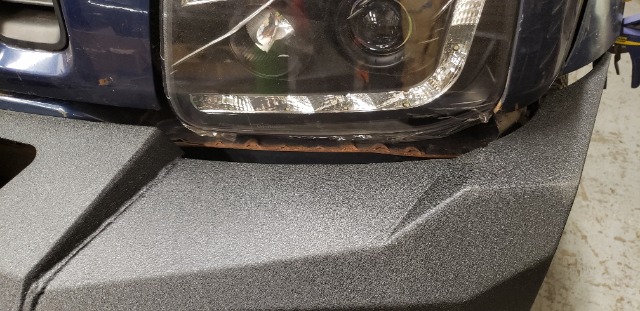

I will get you some photos today as I need to do one of my essential food shops.

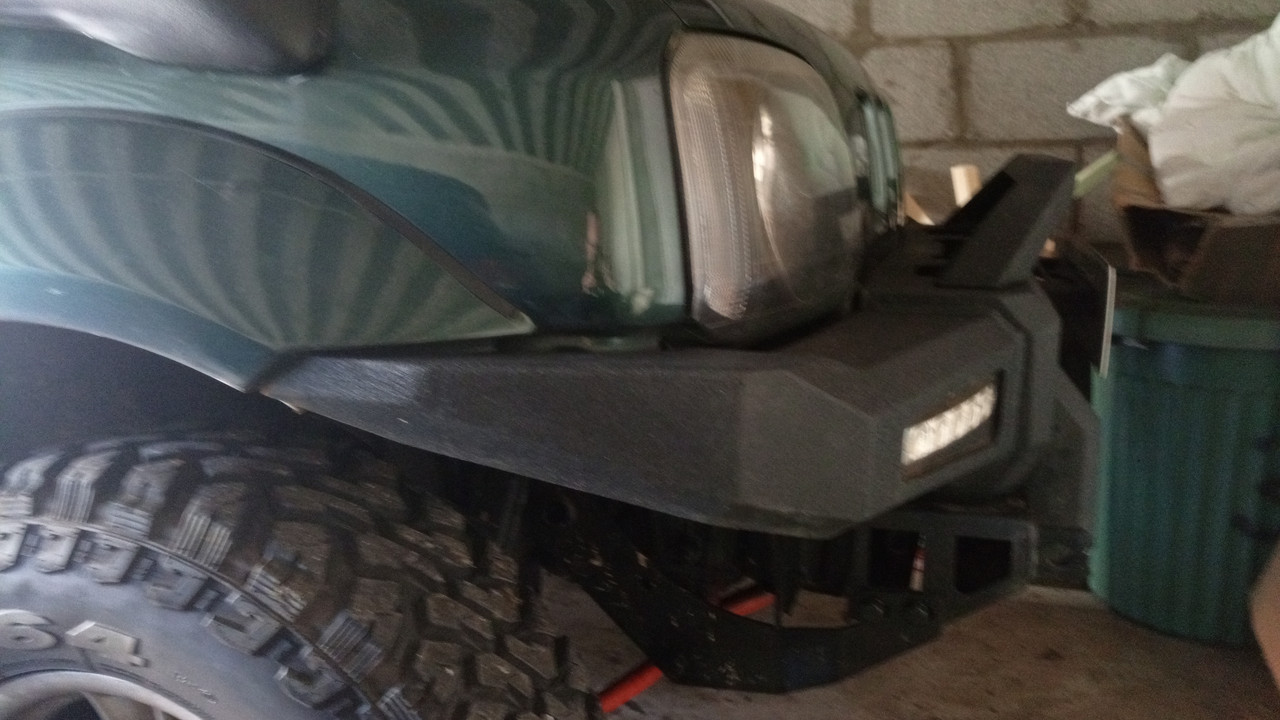

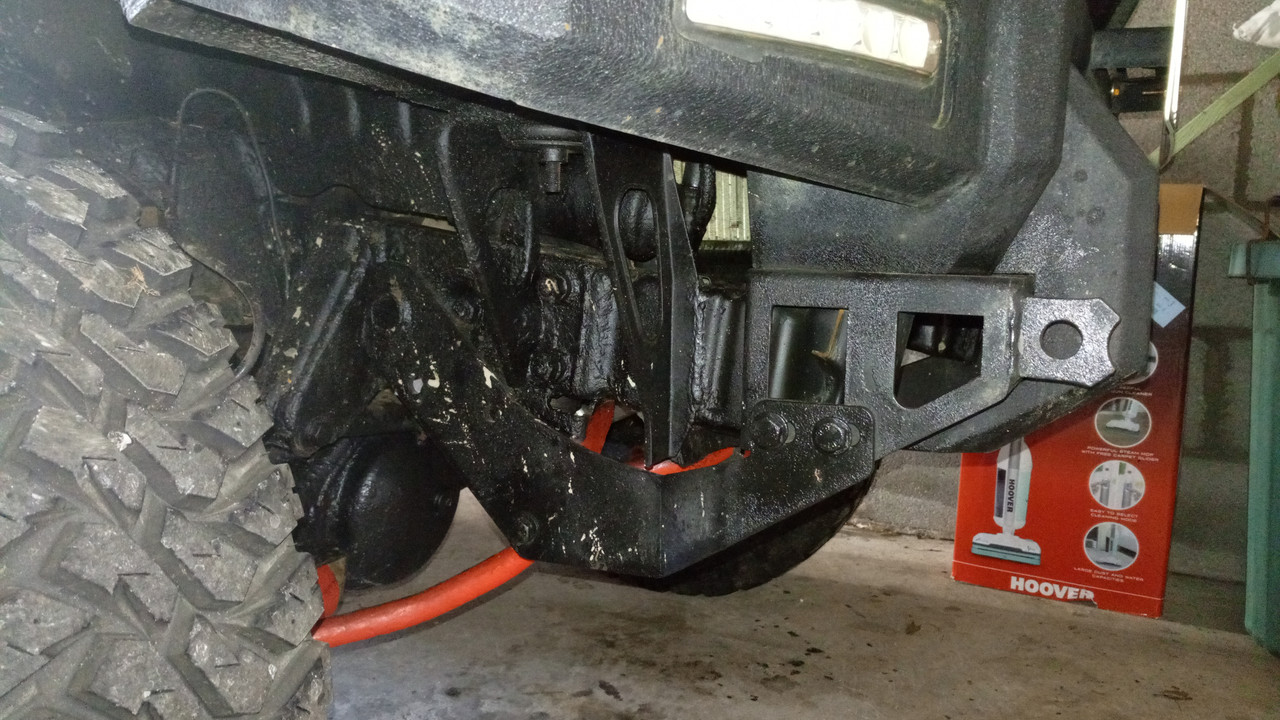

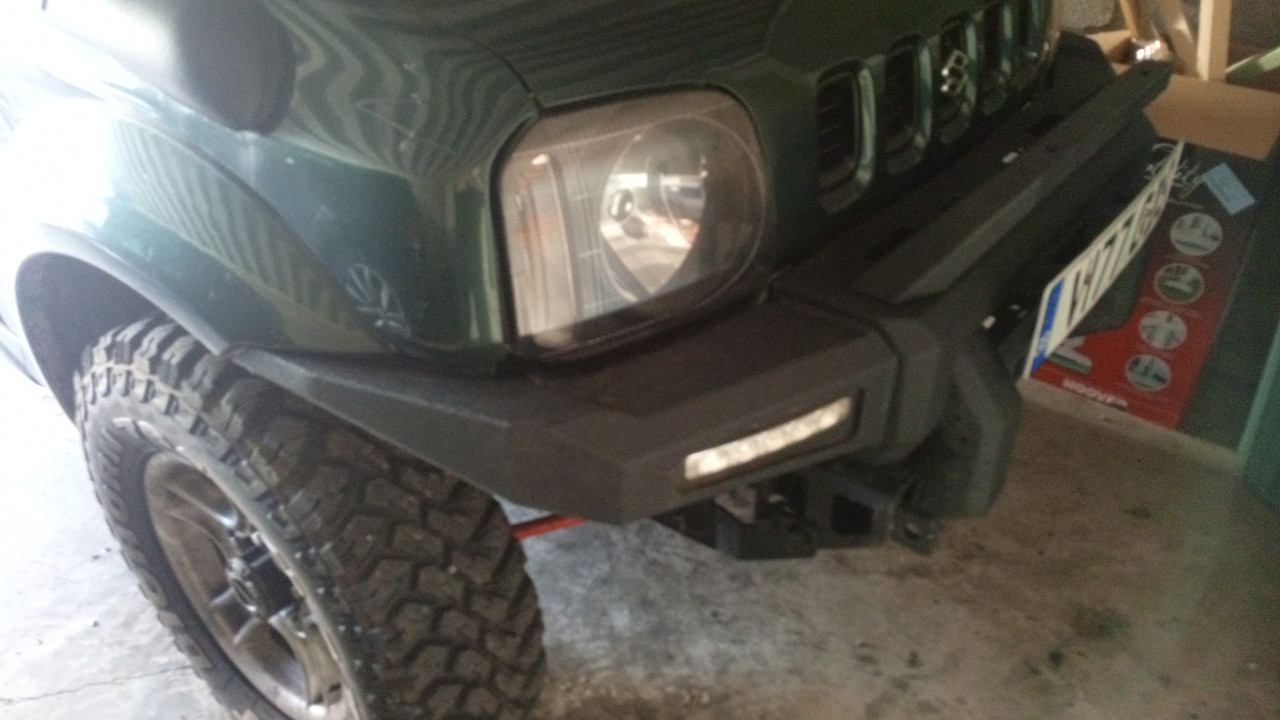

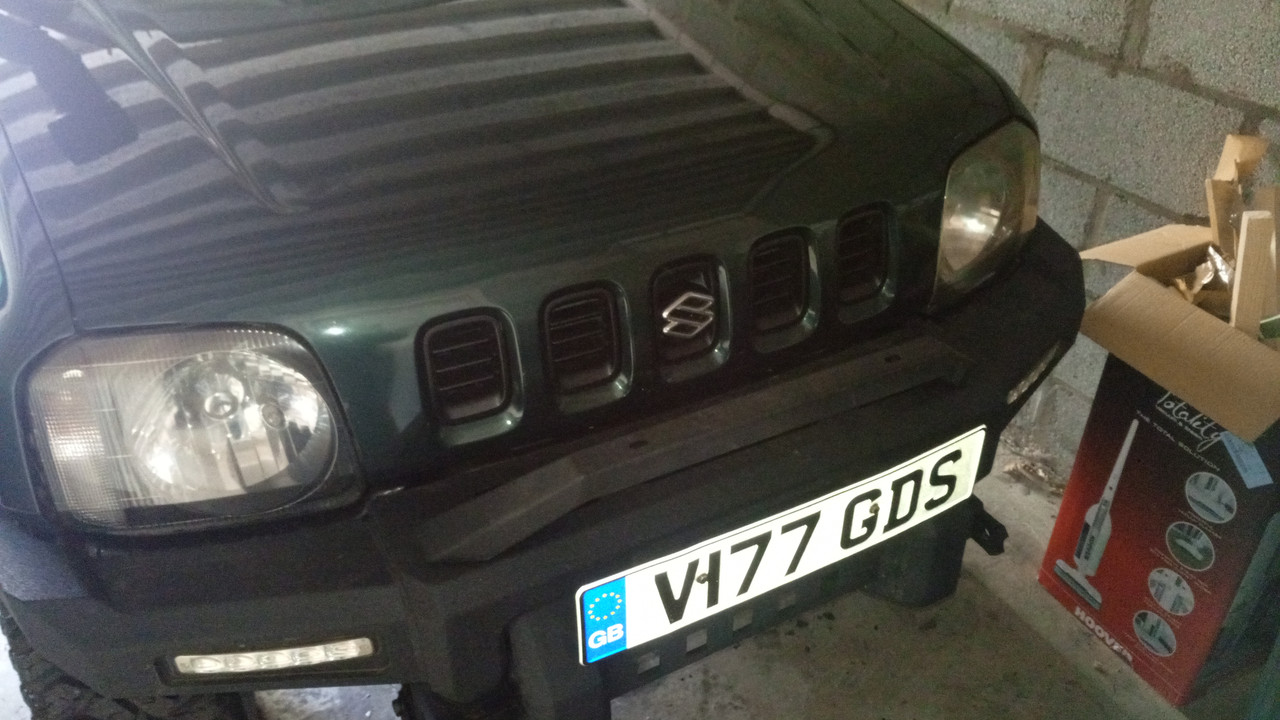

Edit: here you go - let me know if you want pictures of anything else!
Edit: here you go - let me know if you want pictures of anything else!
Last edit: 26 Mar 2020 08:52 by Reason2doubt. Reason: Added photos
