Phonic wheel (speedometer sensor gear) Jimny VVT

  • jimnynatal
  • Topic Author
  • New Member
  • New Member
    Public
More
13 Nov 2015 20:35 #156213 by jimnynatal
Replied by jimnynatal on topic Phonic wheel (speedometer sensor gear) Jimny VVT
Thank you! I've got it! :)


Photos or drawings of the CMP and CKP wheels? Does anybody have them?

Please Log in or Create an account to join the conversation.

  • jimnynatal
  • Topic Author
  • New Member
  • New Member
    Public
More
01 Dec 2015 13:01 #157662 by jimnynatal
Replied by jimnynatal on topic Phonic wheel (speedometer sensor gear) Jimny VVT

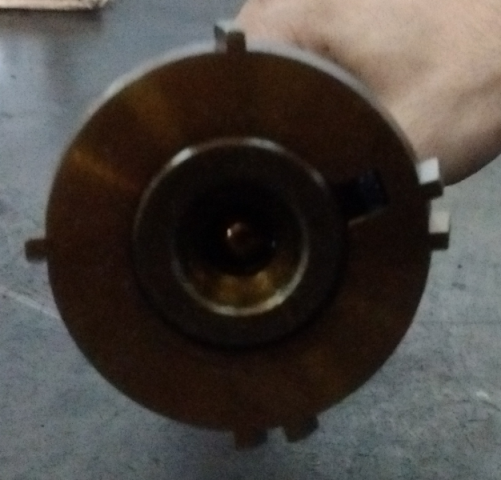

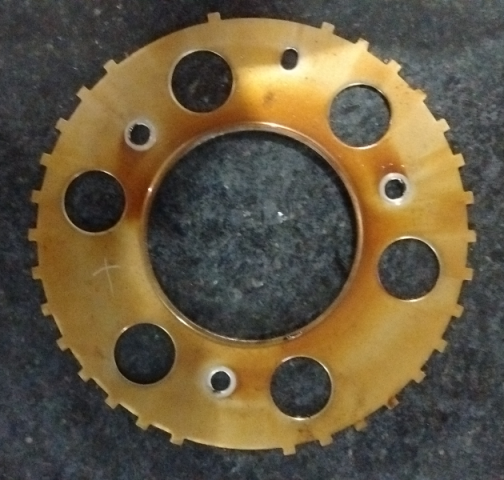

I took pictures of the CKP and CMP wheels! Here they are:

CKP:





CMP:


Attachments:

Please Log in or Create an account to join the conversation.

  • BigT
  • New Member
  • New Member
    Public
More
01 Dec 2015 19:22 #157671 by BigT
Good photos, it makes understanding the trace on the scope much easier

Please Log in or Create an account to join the conversation.

  • jimnynatal
  • Topic Author
  • New Member
  • New Member
    Public
More
10 Nov 2016 18:54 #174483 by jimnynatal
Replied by jimnynatal on topic Phonic wheel (speedometer sensor gear) Jimny VVT
At top dead center of the first cylinder, what is the position of the CKP´s wheel?

Please Log in or Create an account to join the conversation.
