Wrong snorkel template?
28 May 2020 15:39 - 28 May 2020 18:37 #222933
by HUN
Nope. Just kidding.

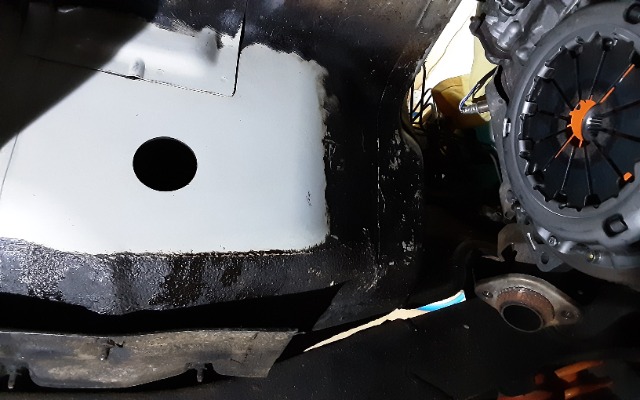

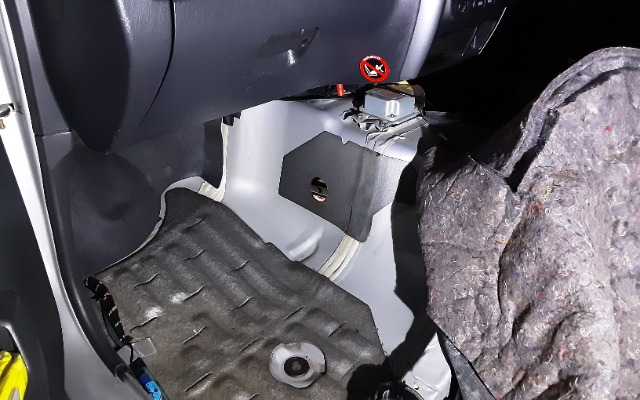

I just had more trouble in the last 6 months with my gearbox than others in their lifetime. This week I will fit my gearbox 4th time...after a full reconditioning of the gearbox the input shaft oil seal was leaking. I have replaced all seals every time then refilled the box before went for a test drive. This time I changed the bell housing and input shaft also because I suspect the old one worn or might be damaged somehow? Regardless I'm prepared to take it apart again but with less effort than previously. At least refill will be easier...hence this 50mm hole. Rubber grommet is on the way!
TrailMaster 2" lift kit
Full floating rear axle conversion, JB underbody guards & recovery points
ORE transfer box HD brackets
T-Max split charge system
X-Shock Dakar ceramic clutch kit & roof rack
Flo-Flex castor polybushes
Kumho KL71 tyres
AVM manual hubs
ORA radius arm guards
Push-fit breathers
Wrong snorkel template? was created by HUN
Nope. Just kidding.
I just had more trouble in the last 6 months with my gearbox than others in their lifetime. This week I will fit my gearbox 4th time...after a full reconditioning of the gearbox the input shaft oil seal was leaking. I have replaced all seals every time then refilled the box before went for a test drive. This time I changed the bell housing and input shaft also because I suspect the old one worn or might be damaged somehow? Regardless I'm prepared to take it apart again but with less effort than previously. At least refill will be easier...hence this 50mm hole. Rubber grommet is on the way!
TrailMaster 2" lift kit
Full floating rear axle conversion, JB underbody guards & recovery points
ORE transfer box HD brackets
T-Max split charge system
X-Shock Dakar ceramic clutch kit & roof rack
Flo-Flex castor polybushes
Kumho KL71 tyres
AVM manual hubs
ORA radius arm guards
Push-fit breathers
Last edit: 28 May 2020 18:37 by HUN. Reason: Typo..
Please Log in or Create an account to join the conversation.
- jackonlyjack
-
- Offline
- Platinum Member
-
Registered
28 May 2020 22:33 #222958
by jackonlyjack
Replied by jackonlyjack on topic Wrong snorkel template?
This modification is on my to do list

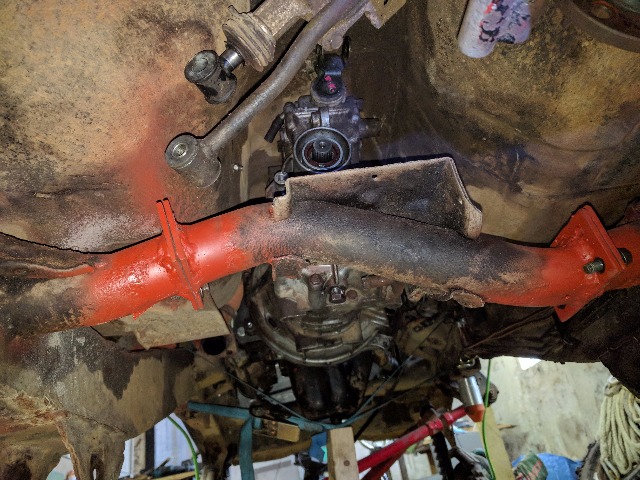

Also going to make chassis gear box cross member removable
