2009 Suzuki Jimny
03 Nov 2024 18:18 #258161
by Rickwr
2009 Suzuki Jimny was created by Rickwr
We have just bought our first Jimny, a 2009 1.3 JLX Jimny (unsure what generation that is?).
Very surprised to see the upper rear light bar only has one bulb for the reverse light and the red rear lights are blanked off.
I'm wondering if anyone has bought any after market tail lights and rewired it to show red rear lights on the upper bars as well as in the bumper?
Thanks in advance
Rick
Very surprised to see the upper rear light bar only has one bulb for the reverse light and the red rear lights are blanked off.
I'm wondering if anyone has bought any after market tail lights and rewired it to show red rear lights on the upper bars as well as in the bumper?
Thanks in advance
Rick
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 1929
- Thank you received: 500
03 Nov 2024 18:49 #258166
by DrRobin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Replied by DrRobin on topic 2009 Suzuki Jimny
Congrats on buying a Jimny, your 2009 is a Gen 3.
The rear lights always looked odd to me, almost as if there was a fault, however, the arrangement works fine. I never really thought more than one reversing light was necessary and this might be quite common on vehicles today, as is one rear fog light.
I am not sure if there is a maximum number of rear lights you can have on a vehicle, I know that all lights must be CE approved and I think the maximum bulb size for a rear light is 5W, so if you go for aftermarket lights (these are usually LED now) make sure they are approved and CE marked.
The rear lights always looked odd to me, almost as if there was a fault, however, the arrangement works fine. I never really thought more than one reversing light was necessary and this might be quite common on vehicles today, as is one rear fog light.
I am not sure if there is a maximum number of rear lights you can have on a vehicle, I know that all lights must be CE approved and I think the maximum bulb size for a rear light is 5W, so if you go for aftermarket lights (these are usually LED now) make sure they are approved and CE marked.
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Please Log in or Create an account to join the conversation.
03 Nov 2024 20:02 #258172
by fordem
Replied by fordem on topic 2009 Suzuki Jimny
The third gen rear lights are in the bumper, the red upper light is a rear fog - before you change anything familiarize yourself with the lighting regulations where you happen to be - there may be a requirement for the rear fog to be more than a specific distance from the remainder of the rear lights.
I have done what you are asking about on a Grand Vitara, but I'm in a country that doesn't require a rear fog, and in fact the only rear light required by law is a single red light "affixed to the right of center"
This GV now has dual sets of tail lights, brake lights & turn signals, one set (two) number plate lights and one set (two) reverse lights.
A side effect of this modification is a blown turn signal bulb does not have the "fast flash" tell tale, which may also be a legal requirement in some jurisdictions (it's not where I am).
I have done what you are asking about on a Grand Vitara, but I'm in a country that doesn't require a rear fog, and in fact the only rear light required by law is a single red light "affixed to the right of center"
This GV now has dual sets of tail lights, brake lights & turn signals, one set (two) number plate lights and one set (two) reverse lights.
A side effect of this modification is a blown turn signal bulb does not have the "fast flash" tell tale, which may also be a legal requirement in some jurisdictions (it's not where I am).
Please Log in or Create an account to join the conversation.
03 Nov 2024 20:20 #258175
by jlines
Replied by jlines on topic 2009 Suzuki Jimny
Yes it is weird why Gen 3 Jimnys have such big rear lights which don't actually do much. Interestingly we have a JDM imported Gen 3 Jimny that lives near us and I noticed in the dark a few months ago that it does display full rear running lights on the upright light bars so perhaps there is a reason why it's blanked. Perhaps European regulations?
The following user(s) said Thank You: Rickwr
Please Log in or Create an account to join the conversation.
03 Nov 2024 21:27 #258179
by fordem

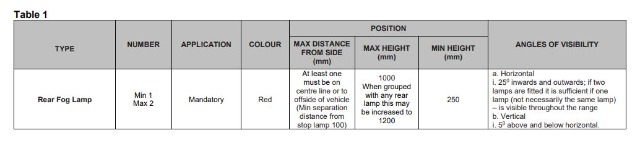

The text above is from one of the UK IVA standards - the rear fog has a minimum height requirement as well as a minimum from the brake lamp.
The regulations differ depending on country, I think Australia requires the tail lights to be visible from any angle behind the vehicle, tail gate mounted spare wheels cause a problem, so they also use the tail lights in the bumper, but as far as I know there is no requirement for a rear fog.
Replied by fordem on topic 2009 Suzuki Jimny
Perhaps European regulations?
The text above is from one of the UK IVA standards - the rear fog has a minimum height requirement as well as a minimum from the brake lamp.
The regulations differ depending on country, I think Australia requires the tail lights to be visible from any angle behind the vehicle, tail gate mounted spare wheels cause a problem, so they also use the tail lights in the bumper, but as far as I know there is no requirement for a rear fog.
The following user(s) said Thank You: Rickwr
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 9082
- Thank you received: 1817
04 Nov 2024 07:35 #258184
by Lambert
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
Replied by Lambert on topic 2009 Suzuki Jimny
The reason is to do with having the spare wheel on the back door and it obscuring the upper light when the door is open hence the lights being in the bumper where they are asking to be damaged when off road.
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
Please Log in or Create an account to join the conversation.
04 Nov 2024 07:46 - 04 Nov 2024 07:46 #258187
by yakuza
From 2005 the norwegian Jimny has the rear lights up there. Brake too.
Rear highway/fog and blinkers is downstairs.
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Replied by yakuza on topic 2009 Suzuki Jimny
From 2005 the norwegian Jimny has the rear lights up there. Brake too.
Rear highway/fog and blinkers is downstairs.
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Last edit: 04 Nov 2024 07:46 by yakuza.
