Torque sequence G13B
- Markiemark
- Topic Author
- Offline
- New Member
-
Registered
Less
More
- Posts: 12
- Thank you received: 0
19 Jan 2023 20:10 #247025
by Markiemark
Torque sequence G13B was created by Markiemark
Please Log in or Create an account to join the conversation.
- Roger Fairclough
-
- Offline
- Platinum Member
-
Registered
Less
More
- Posts: 1457
- Thank you received: 211
19 Jan 2023 20:36 #247026
by Roger Fairclough
Replied by Roger Fairclough on topic Torque sequence G13B
Well it's not black magic!

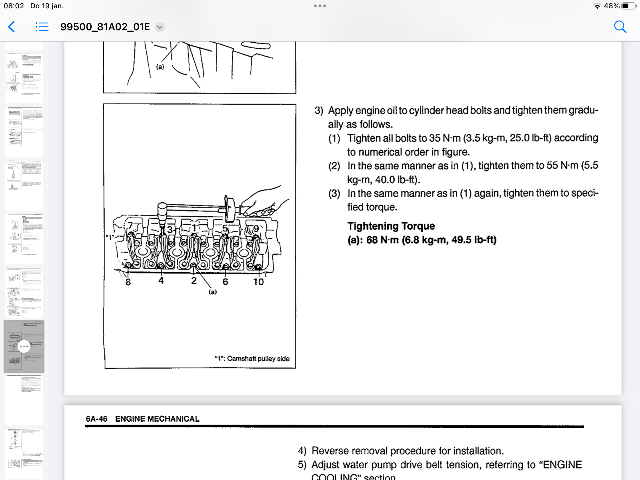

(a) because it's the first letter of the alphabet and start at no.2 because, well why not? You start in the middle with one bolt and tighten it but not fully. You move across and ditto then opposite and so on. The idea is to tighten evenly and gently. In the factory all bolts are tightened to full torque at the same time. Why the start at no.2? why not - shrug of the shoulders at that point!
Roger
(a) because it's the first letter of the alphabet and start at no.2 because, well why not? You start in the middle with one bolt and tighten it but not fully. You move across and ditto then opposite and so on. The idea is to tighten evenly and gently. In the factory all bolts are tightened to full torque at the same time. Why the start at no.2? why not - shrug of the shoulders at that point!
Roger
The following user(s) said Thank You: Markiemark
Please Log in or Create an account to join the conversation.
19 Jan 2023 21:57 #247028
by yakuza
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Replied by yakuza on topic Torque sequence G13B
haha I never knew this, just did them evenly from my own pattern. Just knew the torque. 20 years ago the manuals wasn't to be found online just yet.
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 2105
- Thank you received: 558
20 Jan 2023 08:32 #247032
by DrRobin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Replied by DrRobin on topic Torque sequence G13B
I might have missed something here but the manual says ‘numerical’ order so shouldn’t bolt number 1 be the first? I couldn’t see the relevance of the mark (a), but didn’t check all of the pages either side.
Anytime I have a casting that needs torquing down, I always do it in stages, run the bolts in hand tight first, then just nip up to seat the gasket. Then torque to 2 or 3 intermediate torque settings. After the final torque go round twice, or possibly with 1nm more just to make sure they are all the same. It takes a bit longer, but much less time than stripping and rebuilding if something goes wrong.
If you don’t do it in stages you stand a chance of it not sitting flat and then possibly warping the head.
In the absence of a torque pattern always start in the middle and work your way out diagonally.
Robin
Anytime I have a casting that needs torquing down, I always do it in stages, run the bolts in hand tight first, then just nip up to seat the gasket. Then torque to 2 or 3 intermediate torque settings. After the final torque go round twice, or possibly with 1nm more just to make sure they are all the same. It takes a bit longer, but much less time than stripping and rebuilding if something goes wrong.
If you don’t do it in stages you stand a chance of it not sitting flat and then possibly warping the head.
In the absence of a torque pattern always start in the middle and work your way out diagonally.
Robin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
