Improved Headlights

I recently upgraded to Osram Night Breakers. Although I was pleased with the improvement, it wasn't quite as much as I was hoping for. I wanted to ask if anyone has added a headlight relay circuit to prevent any voltage drop and, if so, what the result was. I haven't taken any measurements but realize the wire size and length of the headlight circuit could cause some degradation.

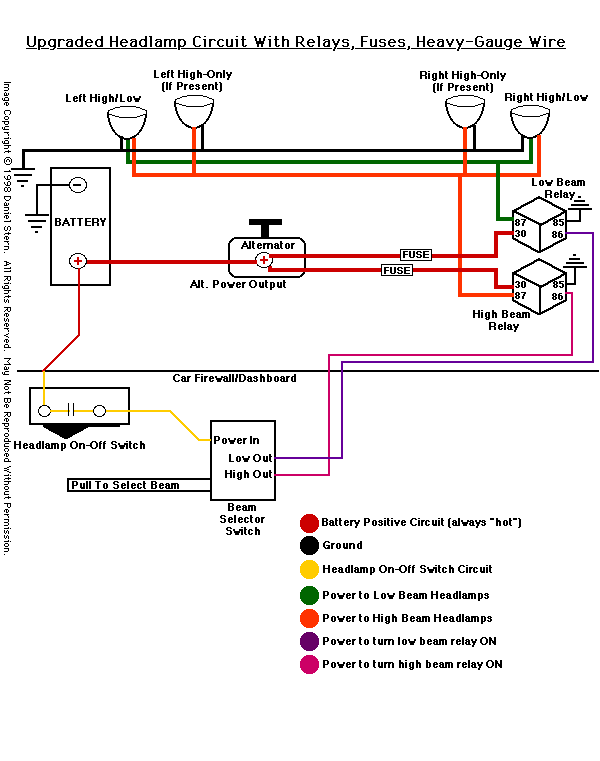

I was thinking of something like this:

Be ok, except the beam selector switch switches the earths, so take your relay coils to live instead of earth.

If you have a multimeter you can measure the drop along the wire by putting one probe on the live side of the bulb connection and the other probe on the battery live ( have lights rurned on obviously ) any potential difference (voltage drop will be displayed on the screen and you can see if its worth while . It should be quite small , as a rule of thumb when checking the voltage drop anything above .5v is a problem (bad connection /partial break)

Sent from my SM-G361F using Tapatalk

Thanks to both of you for the replies. Sorry for the delay in answering the posts but I've been really busy.

Facade said:

Be ok, except the beam selector switch switches the earths, so take your relay coils to live instead of earth.

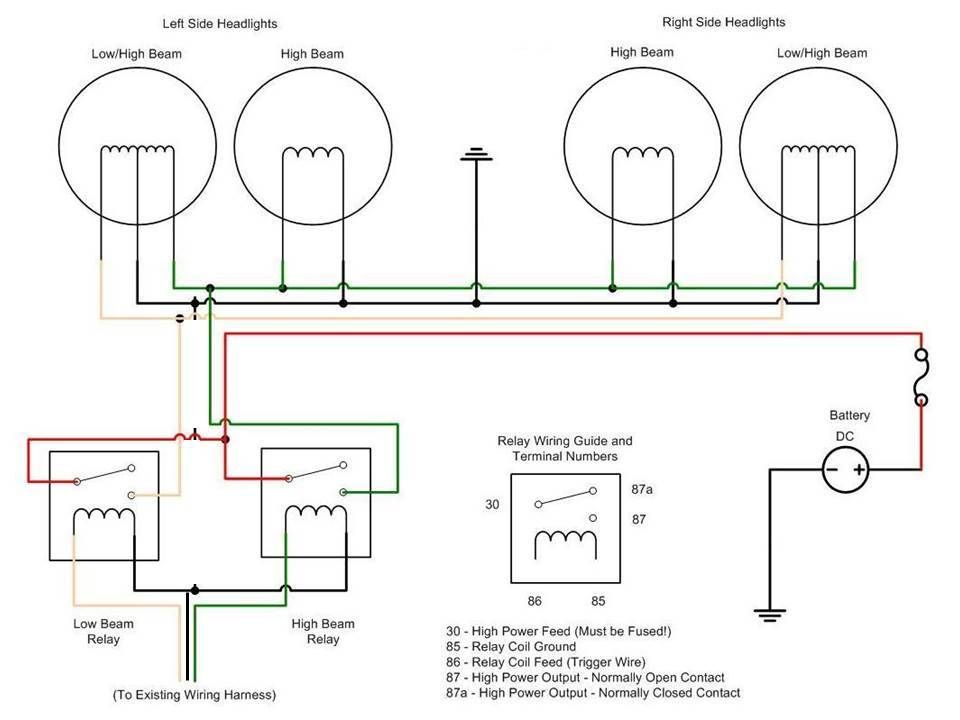

Good catch. Looked at the wiring diagram and you are correct. I took a whole 2 minutes to crudely modify another diagram which shows more accurately how the circuits would be handled. This should take care of energizing both high and low beam relays.

Dean said:

If you have a multimeter you can measure the drop along the wire by putting one probe on the live side of the bulb connection and the other probe on the battery live ( have lights turned on obviously ) any potential difference (voltage drop will be displayed on the screen and you can see if its worth while . It should be quite small , as a rule of thumb when checking the voltage drop anything above .5v is a problem (bad connection /partial break)

Actually, I already did. Sorry.....my fault. When I said I didn't take measurements, I meant for cable lengths and wire gauge. The gauge appeared to be 18awg but not sure.

The voltage drop was about .2 volts but considering that the affect of voltage drop on light output isn't linear, I was wondering if anyone had already integrated a relay circuit for their headlights. Adding to that, headlamp switches often use small, high-resistance contacts that cause some additional degradation over time and my .2 drop is on a 2015.

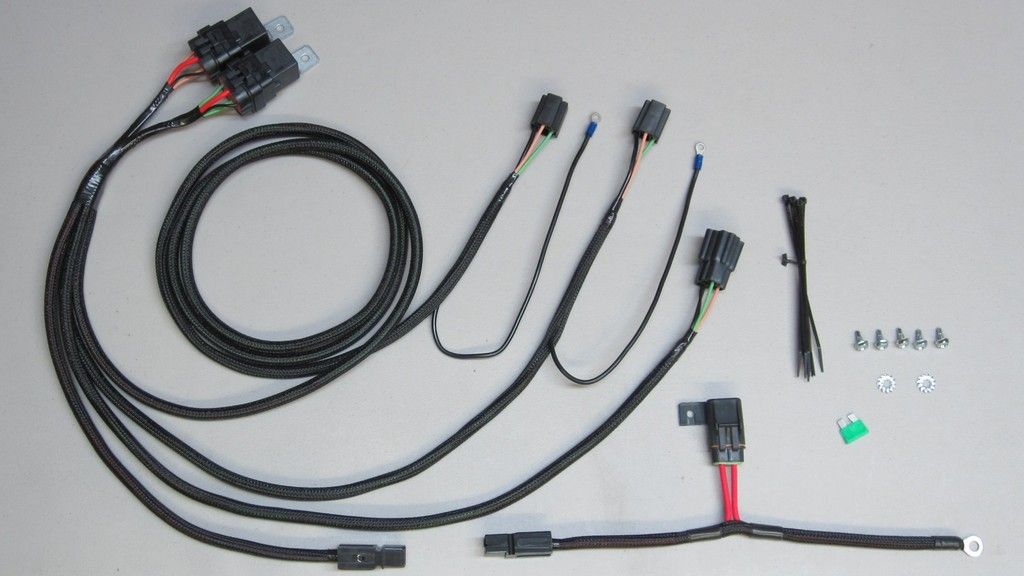

Either way the engineer in me has taken over and I purchased this:

I guess I can't leave well enough alone. In my defense, I would refer to Halford's post:
www.bigjimny.com/index.php/forum?view=topic&catid=15&id=59320

Specifically:

Understanding Engineers #6
Normal people believe that if it ain't broke, don't fix it. Engineers believe that if it ain't broke, it doesn't have enough features yet.

Nice tidy loom !
I suppose its best to sort it now rather than get used to gradually dimming lights . Let us know how you get on, looking forward to it

Sent from my SM-G361F using Tapatalk

I mentioned in another post that I received about half of the electrical parts I ordered. This is what came:

Even though I can't do a final installation until the rest of my parts arrive, I decided that I could temporarily set up the new headlight harness to compare the difference with the factory wiring. I don't have a means of measuring output (other than my eyes) but there did seem to be an improvement. It wasn't as much as going to the Osram Night Breakers but at least (unless I'm only imagining) there was some. Since I plan on keeping the Jimny for a long time, I hope that preventing any degradation makes it worth the trouble.
