Boot Light
13 Nov 2019 09:42 #215595
by DrRobin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Boot Light was created by DrRobin
I am currently making a parcel shelf, but the boot is already pitch black when dark and the parcel shelf just makes it worse, it really needs a light in there. My Jimny is already fitted with a rear door switch and noticed a knock out panel in the side trim which I thought might make a good boot light. I had to run a +12V wire from the dash board, but that was easy enough to do.
My starting point was a LED footwell light for an Audi, bought from eBay (2 for about £8.50)

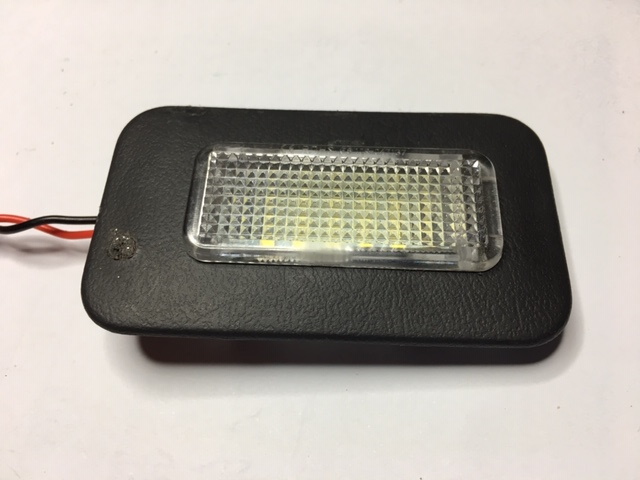

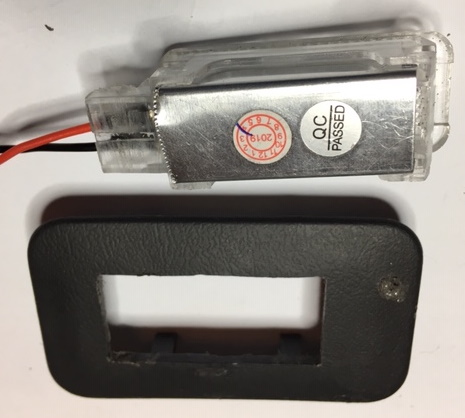

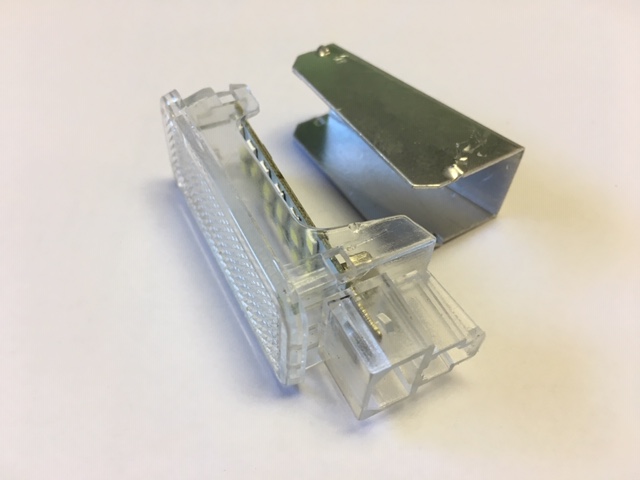

The Audi light turned out to be too deep and hits the metal behind the knock out, so I didn't need the connector and removed some of the plastic and cut the metal reflector/heat shield down. I soldered a couple of wires on to the terminals and then used a two part connector (old disk drive connector) so it is easy to remove/change. Here it is modified and with a cut out in the knock out.

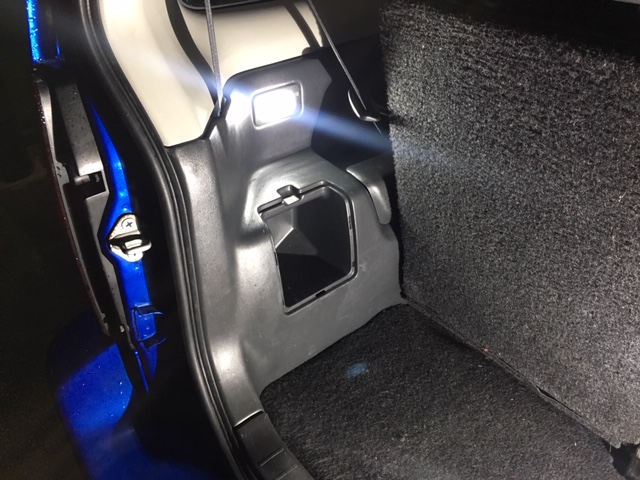

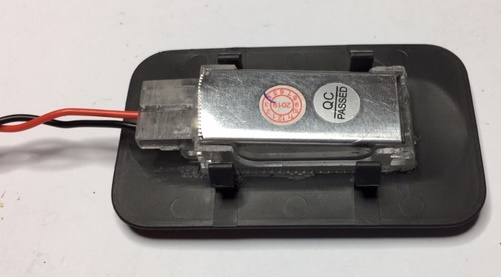

It fitted in to the knock out and the flange on the LED light unit covers the cut out edge.

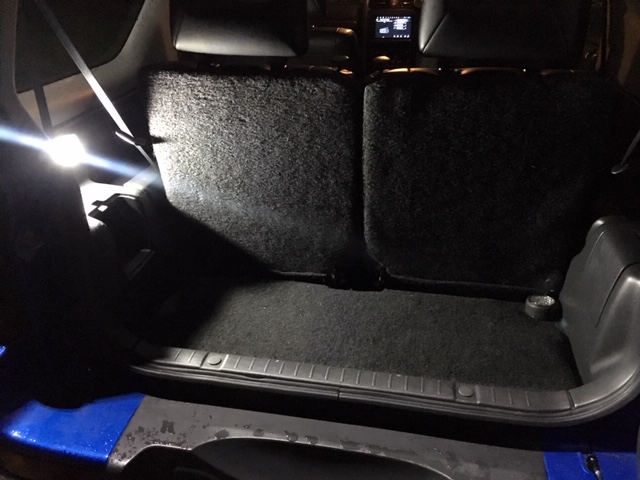

I had to trim the side panel a little behind the knock out as the wires hit the trim, but it is covered by the knock out/light when it is in place. Now my boot lights up like Blackpool on a winters night.
Robin
My starting point was a LED footwell light for an Audi, bought from eBay (2 for about £8.50)
The Audi light turned out to be too deep and hits the metal behind the knock out, so I didn't need the connector and removed some of the plastic and cut the metal reflector/heat shield down. I soldered a couple of wires on to the terminals and then used a two part connector (old disk drive connector) so it is easy to remove/change. Here it is modified and with a cut out in the knock out.
It fitted in to the knock out and the flange on the LED light unit covers the cut out edge.
I had to trim the side panel a little behind the knock out as the wires hit the trim, but it is covered by the knock out/light when it is in place. Now my boot lights up like Blackpool on a winters night.
Robin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Please Log in or Create an account to join the conversation.
- Daniel30
- New Member
-
Public
- Mole
- New Member
-
Public
16 Nov 2019 08:13 #215681
by Mole
Replied by Mole on topic Boot Light
Looks a tidy job I had to do similar but I haven't got rear seats so I did this where the seat belt was
