Hi all,

I've been spending today cleaning and reconnecting electrical harness connections in the engine bay, but there's one plug, just under where the battery tray goes that's left.

Does anyone know what this one plugs into or where it should go?
2" Trailmaster suspension lift, 2"body lift, snorkel, full breather kit, 29" steel wheels with BFG tyres, tinted rear windows, CRT CB radio with modulator antenna mounted on rear, dog cage and tray in the back.

Please Log in or Create an account to join the conversation.

  • Lambert
  • Offline
  • Moderator
  • Moderator
    Registered
  • The best Jimny in Harrogate...(that I own)
More
29 Mar 2021 15:43 #234100 by Lambert
Replied by Lambert on topic Body lift
Not sure. I have a few redundant ones on Dreadnaught that could be to do with an auto trans or something market specific. But equally I don't do electrics.
Temeraire (2018 quasar grey automatic)
R.E.D Retired Extremely Dangerous
Bellerophon (2024 grello van) daily dose of disappointment.

Please Log in or Create an account to join the conversation.

More
29 Mar 2021 15:59 #234102 by Mike G
Replied by Mike G on topic Body lift
Hi Lambert,

I don't think it's redundant as I checked the contacts and they look quite clean, as does the sealed portion of the plug.

I should have added that I have an M13 engine as it's a 2007 Jimny.

I did think it might be something to do with the A/C system, but it's the wrong side of the engine for that.
2" Trailmaster suspension lift, 2"body lift, snorkel, full breather kit, 29" steel wheels with BFG tyres, tinted rear windows, CRT CB radio with modulator antenna mounted on rear, dog cage and tray in the back.

Please Log in or Create an account to join the conversation.

  • X8GGY
  • New Member
  • New Member
    Public
More
29 Mar 2021 16:26 #234105 by X8GGY
Replied by X8GGY on topic Body lift

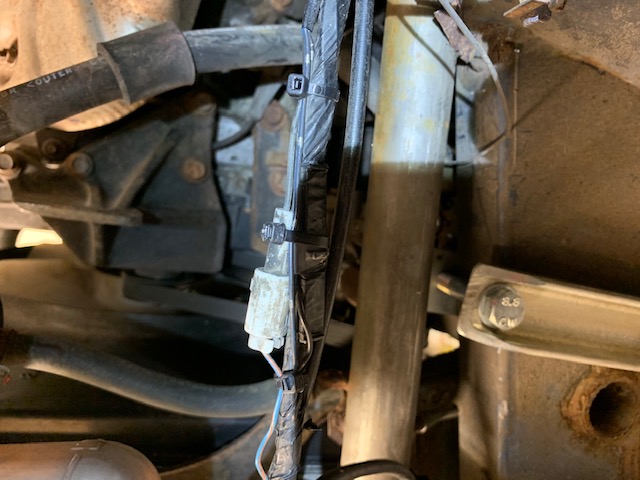

Is it this one -



Easier to see with no inner wings! :lol:

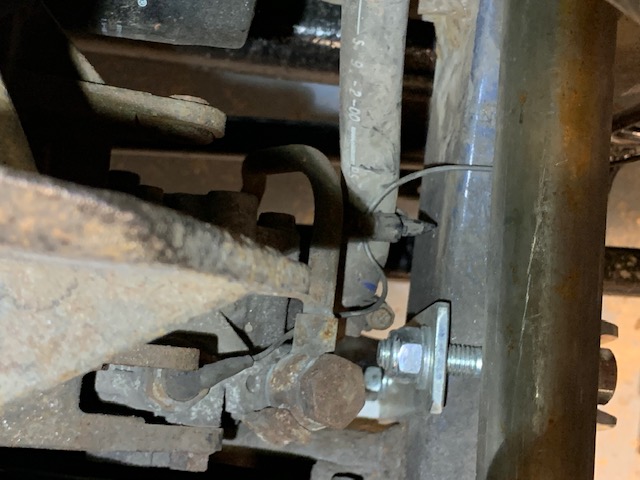

Single wire from this goes off to the power steering pump top...?

Please Log in or Create an account to join the conversation.

More
29 Mar 2021 17:38 - 29 Mar 2021 17:38 #234109 by Riccy
Replied by Riccy on topic Body lift
Looks like the plug for the vac hub solenoid, which is located on the wing below the battery.

Its the one you bridge the pins to fool the 4x4 ecu into thinking the vac hubs are working when fitting manual hubs ;-)
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp

Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...

www.youtube.com/user/riclemus
Last edit: 29 Mar 2021 17:38 by Riccy.
The following user(s) said Thank You: X8GGY

Please Log in or Create an account to join the conversation.

  • X8GGY
  • New Member
  • New Member
    Public
More
29 Mar 2021 17:41 #234110 by X8GGY
Replied by X8GGY on topic Body lift
Ah... I'm on the wrong side! :lol:
