Winch help please

DAGZOOK
Offline
Elite Member
Registered
First Time ZOOK owner!

19 Jul 2020 06:50 #225306 by DAGZOOK

Replied by DAGZOOK on topic Winch help please

I agree, the main L + N supply terminals should be large 100amp jobbies. The small black box on top of the winch is probably your remote/switch feed. There must be some big obvious terminals similar to what we can see on the front?

Please Log in or Create an account to join the conversation.

Phattaff
Topic Author
New Member
Public

19 Jul 2020 08:23 #225308 by Phattaff

Replied by Phattaff on topic Winch help please

Cheers Guys
Couldn't find the wiring diagrams, but think I understand what I need to do. Will post up pics again showing both sides of the winch just to be sure.
Thanks again for you're help
Phattaff

Please Log in or Create an account to join the conversation.

Phattaff
Topic Author
New Member
Public

19 Jul 2020 09:24 #225311 by Phattaff

Replied by Phattaff on topic Winch help please

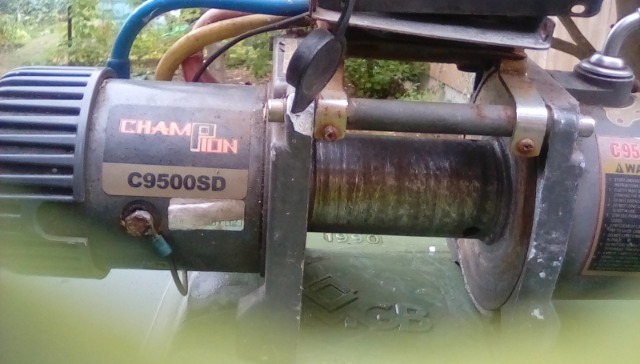

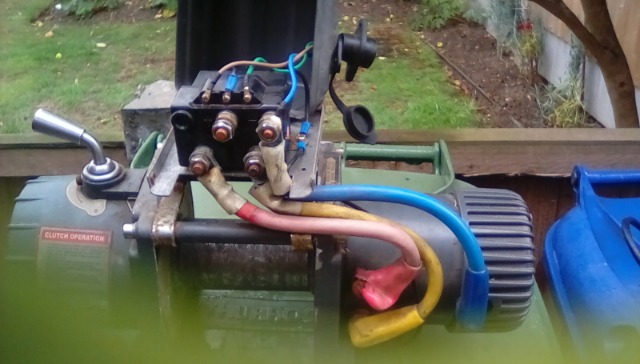

Ok here are a couple of pics showing both sides of the winch. If I'm correct i need to connect to the positive on the black box then the negative to the bolt on the side of the winch?
Thanks again for your help
Phattaff

Please Log in or Create an account to join the conversation.

RainerK
Offline
Elite Member
Registered

19 Jul 2020 09:40 #225313 by RainerK

Replied by RainerK on topic Winch help please

Positive to the Albright and negative to the connection point at the bottom of the motor.

Keep also the small cables at the connection points connected so that you can use your remote control.

100A fuse is only for testing. If you operate your winch in the field it will be more like 400A but this something you have to find out.

Make sure that you have the winch fixed properly before testing because otherwise the casing will start to move.

Please Log in or Create an account to join the conversation.

RainerK
Offline
Elite Member
Registered

19 Jul 2020 09:55 #225314 by RainerK

Replied by RainerK on topic Winch help please

A wiring diagram would be here:

www.horntools.com/pub/more_downloads/H0050_Wire_DE.pdf

Please Log in or Create an account to join the conversation.

Phattaff
Topic Author
New Member
Public

19 Jul 2020 14:06 #225323 by Phattaff

Replied by Phattaff on topic Winch help please

Cheers RainerK

Please Log in or Create an account to join the conversation.
